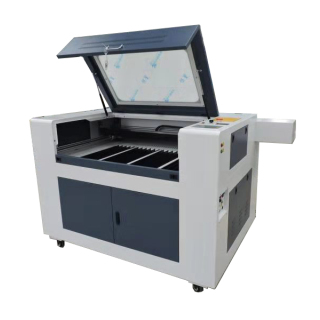

6090 Laser Engraving Machine

Brand:
G-CUT
Product origin:
JINAN,CHINA
Delivery time:
15 days after receipt of deposit
Supply capacity:
500 sets per month
Download:
6090 Laser Engraving Machine

Laser engraving and cutting machine applications industry:
Wood, organic glass, plastic, garments, paper, leather, rubber, and other nonmetal materials.
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry


Laser engraving and cutting machine 6090

Features:

1.ectronic lifting.The machine can automatic adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.

2.Automatic Focusing.Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.

3.Taiwan Hiwin Linear Guide Rail.Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

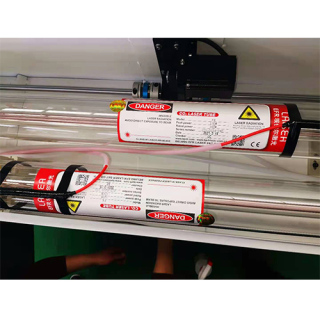

4.RECI Laser Tube.Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.

5.WIFI Control.Convenient- Engineers can remotely control computers and machines, adjust parameters and solve problems.Efficiency- One PC can control several machines.

6.U.S II-VI  Optical Lenses.U.S. optics from American Photonics. Proven 14% beam transmission improvement vs. other optics. High strength gold-plated lenses and aspheric focusing lenses made by II-VI Company, USA.High focus, high transmittance. The lenses can not only ensure the quality of the machine but also make the optical system run a long time with high efficiency and low cost.

7.Leadshine Stepper Motor.Lower noise, low vibration, running more smoothly, higher torque, higher acceleration, higher precision, better acceleration performance.

8.One Button Starting Fan The fan can be started by one button. You can control the fan independently.

9.Double Platforms.Both knife blade and honeycomb platforms for cutting and engraving.

10.High Efficiency Air Filters Environmentally friendly and pollution-free laser can be directly used indoors.Tertiary filtration

Filter large particles in bags.HEPA filtration larger than 0.03UM particle. Activated carbon adsorption system.


Parameters:

Model

6090

Cutting Area

600×900mm

Laser tube type

Sealed-off Glass CO2 Laser  Wavelength: 10.6um

Laser tube power

40W/ 60W  60W/80W  100W/130W

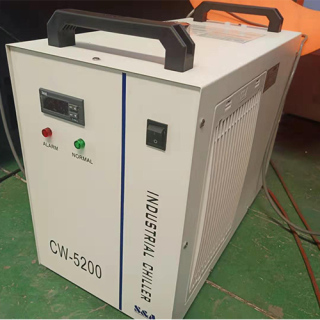

Laser Tube Cooling

 Water cooling

Laser Output Control

0—100% No section controlSoft inner 0—100% adjustable.

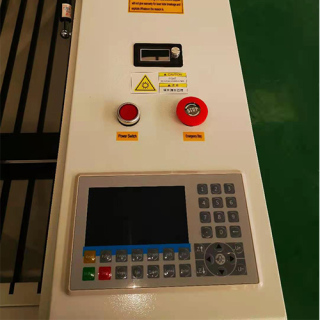

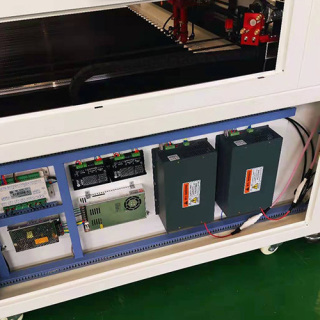

Control System and Driver

High Speed DSP control system, stepper motor, High subdivision driver

Laser Engraving Speed

0-1200mm/s

Laser Cutting Speed

0-600mm/s

 Voltage

AC220V/110V±10%   50HZ/60HZ

Reposition Accuracy

≤±0.01mm

Minimum Letter Size

Chinese : 1.5mm   English :1mm

Machine Power

≤1000W

Rise and Fall Height

100mm (adjusted manually)

Working Environment

Temperature0—45   Humidity 5%—95%

 No condensate water

Supported Format and Software

PLTDSTDXFBMP AI    Support AutoCADCorel Draw output directly

mini laser engraving and cutting machine
