Auto feeding fabric Laser Cutting Machine

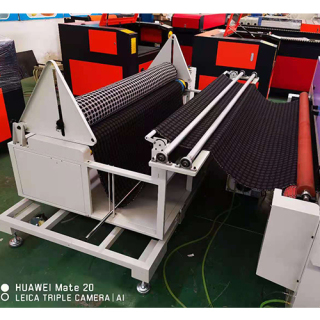

The fabric laser cutting machine is specialized designed to cut fabric. It can be with auto feeding system.
We can sell 500 sets of this machine for one machine.

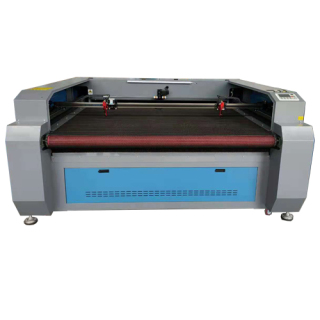

Fabric laser cutting machine
Features:
1.Professional design for client in different industry, reasonable structure, pleased appearance & practical of fabric laser cutting machine.
2. High strength & high stable mechanical structure composed of high precision mould , machine moved stable, in high speed & precision , backopen design convenient for material process & no limit for material length of laser cutting machine
3. Adopt flight path design, special structure, little path deviation, high performance & easy adjustment for our fabric laser cutting machine
4. Update USB offline control system & large memory capacity to improve work speed & efficiency.
5. Up and down table and Rotary device is optional for the laser engraving and cutting machine.
6.The fabric laser cutting machine is specially designed for cutting fabric with auto feeding system.
Parameters:
Model | 1390 1813 |
Working Area | 1300×900mm 1800X1300mm |
Laser tube Type | Sealed-off Glass CO2 Laser Wavelength: 10.6um |
Laser Power | 60W/80W/100W/130W |
Laser Tube Cooling | Water cooling |
Laser Output Control | 0—100% No section control、Soft inner 0—100% adjustable. |
Control System and Driver | High Speed DSP control system, stepper motor, High subdivision driver |
Engraving Speed | 0-1200mm/s |
Cutting Speed | 0-600mm/s |
Voltage | AC220V/110V±10% 50HZ/60HZ |
Reposition Accuracy | ≤±0.01mm |
Minimum Letter Size | Chinese : 1.5mm English :1mm |
Machine Power | ≤1000W |
Rise and Fall Height | 100mm (adjusted manually) |
Working Environment | Temperature：0—45℃ Humidity 5%—95% （ No condensate water） |
Supported Format and Software | PLT、DST、DXF、BMP、 AI、 Support AutoCAD、Corel Draw output directly |
