Metal non-metal laser cutting machine
Features:

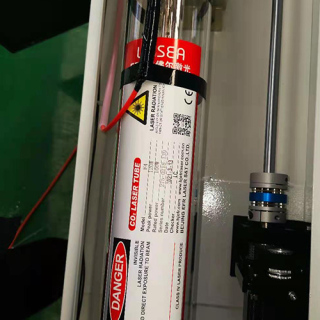

1.Highest quality CO2 laser tube, ensure higher cutting efficiency and better cost performance.
2.Lathe bed processed under 600℃ and cooled in 24 hours, ensure strong rigidity and high precision.
3.Square rail and belt transmission enable the machine high precision.
4.Professional industrial circulation cooling systems with automatic alarm system.
5.Optical components adopt imported U.S.26 mirrors and ZESE focus lens for high quality cutting effect.
6.Constant optical structure to fix the laser path ensures the stable beam transmission.
7.Following focus system realized dynamics focus continuous cutting on material of different thickness.
Applications:

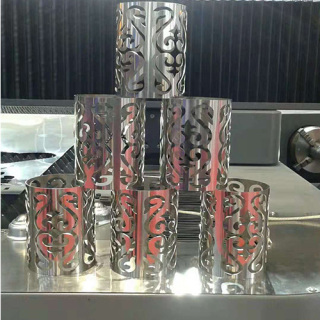

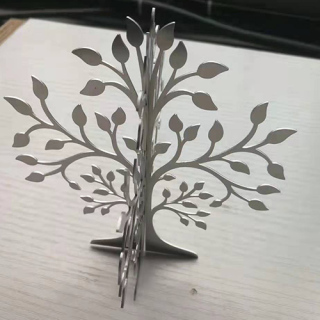

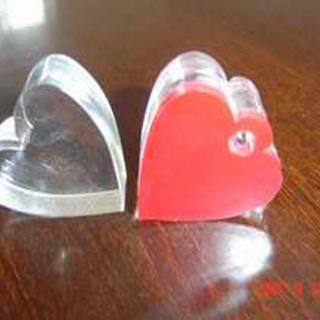

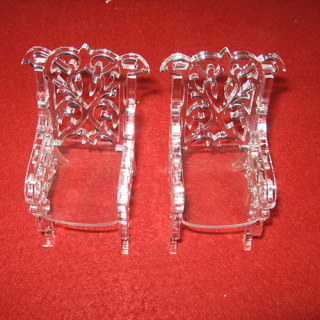

It is applicable for stainless steel, carbon steel, copper, acrylic, wood and other metal non-metal materials.
1.Metal cutting industry: sheet metal structure, high and low voltage electrical cabinet making, hardware, metal crafts, mechanical parts, electrical meter parts etc.
2.Advertising industry
3.Leather processing industry
4.Packing industry
5.Decoration industry
Parameters:
Model | JY1390 JY1325 |
Working size | 1300X900mm 1300mm×2500mm |
Laser type | CO2 sealed laser tube, wavelength 10.6μm（in accordance with GB11748-89 standard）(Optional frequency metal tube) |
Laser power | 150W 180W 200W 260W |
Cooling system | Industrial water cooling system |
Cutting speed | 0-600mm/s (the speed is varied due different thickness of materials) |
Energy adjustment | 0-100％step less control, inside software 0-100% adjust |
Control system | Digital offline control system |
Working voltage | 220V50HZ |
Position accuracy | ≦±0.05mm |
Whole machine power | ≦1500W |
Working environment | Temperature:0-45℃, humidity:5%-95% non-condense |
Supported Format | PLT、DST、DXF、BMP、AI. Support AutoCAD、CorelDraw output directly. |
