Styrofoam cutting CNC router

Brand:
G-CUT
Product origin:
JINAN,CHINA
Delivery time:
15 days after receipt of deposit
Supply capacity:
500 sets per month
Download:
Styrofoam cutting CNC router

Features:
1. The machine is specially designed for the engraving of Polystyrene, PS Styrofoam, and Foam.
2. The whole body is supported by 16 adjustable legs which makes the high stability.
3. The table is jointed with HT200 cast iron board with 40mm thickness.

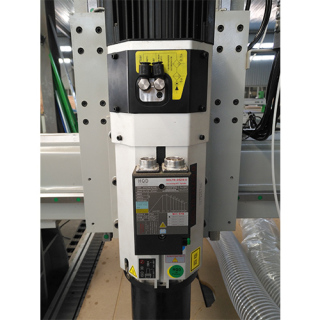

4. Spindle is Italy 6.0KW water cooling. Low rotation and high torque

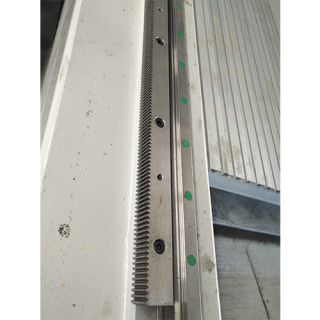

5. Transmission we use H30 square rails and 2m helical rack.

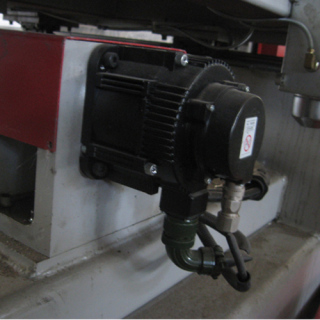

6. Japan YASKAWA 850W servo systems and 1:5 reducers. High precision helical rack and the reducer make movement fast, stable, and high accuracy. It is ideal middle size PS machine.


Parameters:

Model

2040

X,Y,Z travel distance

2000*4000*1000mm

Working accuracy

±0.05mm

Repeat position accuracy

±0.03mm

X,Y transmission

Square rail and rack gear

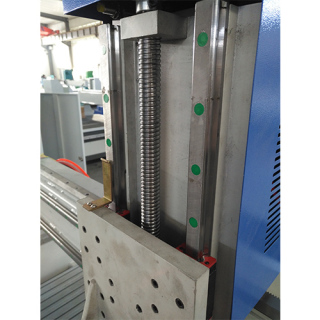

Z transmission

Ball screw

Running speed

≥16000mm/min

Working speed

≥10000mm/min

Spindle power

6.0KW water cooling

Spindle speed

100-12000rpm

Z axis travelling distance

1000mm

Driving mode

Servo motor

Working voltage

380V/50HZ

Working dictate

G code

Control system

TAIWAN SYNTEC

Net weight

8000KG

CNC router
