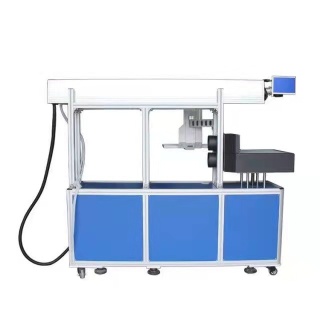

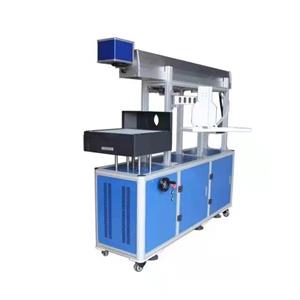

CO2 Laser Marking Machine
CO2 laser marking machine applications:
Co2 laser marking machine is suitable for most non-metals like clothing, pharmaceutical packaging, architecture and ceramics, drinks packaging, fabric cutting, rubber products, shell nameplates, crafts and gifts, electronic components, leather industries etc.
CO2 laser marking machine
Features:
1.High precision and speed: marking depth is easily controlled
2.USA imported RF tube and high speed galvanometer
3.Economic design with a glass CO2 tube
4.Strong anti-interference components that increase stability
5.Red dot position system avoids waste
6.Multi-function software with friendly interface support
7.Free control system and easy to add on optional tools
Parameters
Model | CO2-30W |
Laser power | 20-100W |
Laser Wavelength | 10.64μm |
Repetition Rate | ≤20KHz |
Marking Range | 110*110/200*200/300*300mm (Other size is optional) |
Min Line Width | 0.1mm |
Min Character | 0.4mm |
Marking Depth | 0~0.6mm |
Marking Line Speed | ≤7000mm/s |
Repeatability Accuracy | ±0.01mm |
Response Time | 0.5ms |
Marking Format | Rubber, wood, bamboo products, organic glass, tile, plastic, marble, jade, crystal, other non-metal hard materials |
Graphic Format Support | BMP , JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT |
Working Voltage | 220V/Single/50Hz/15A |
Unit Power | 1.5kw |
Cooling System | Air cooling Water cooling |
Customized | online fly marking, 3D dynamic marking, Rotary marking, according to customer |
