Fiber Laser Marking Machine

Brand:
G-CUT
Product origin:
JINAN,CHINA
Delivery time:
15 days after receipt of deposit
Supply capacity:
500 sets per month
Download:
Fiber Laser Marking Machine

Fiber laser marking machine applications:

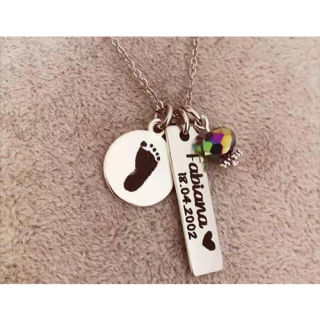

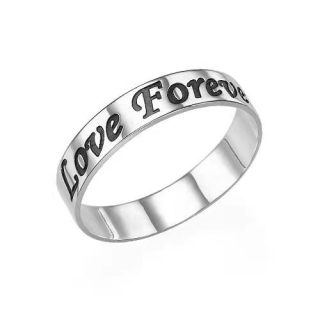

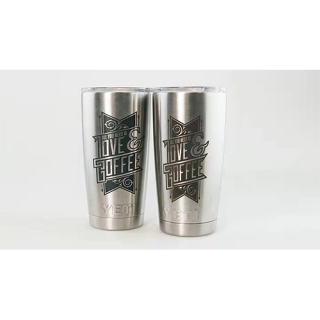

Fiber laser marking machine is widely used in hardware products, tools, accessories, electronic components, integrated circuits(IC), Electrical appliance, telecommunications equipment, precision instruments, jewelry, accessories, auto parts, medical devices and many other fields of graphics and text markup, as well as high-volume productions jobs. Also apply to the button of fabric, leather, wood products, luminous characters, non-metallic ink glass lamp marking.


Fiber laser marking machine

Features:

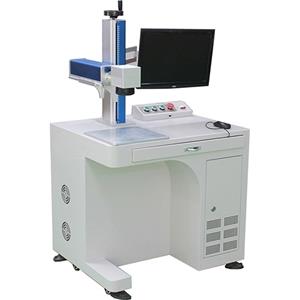

1.This Cabinet type fiber laser marker uses air cooled cooling systerm which is easy and quickly installation. USB port also is used on this laser marker for wiring connection.

2.This IPG 50W fiber laser marker can be applied for: text, graphics, serial number, serial number, bar code or, successive signet (optional equipments), etc

3.Besides above application, this fiber laser marker is suitable for: anodized sculpture, hand tools deep carved, aluminum a deep carved, stainless steel surface carved black, IC table sculpture, etc.

4.This jewelry  hardware fiber laser marker also has following advantages: small volume, avoid consumables, flexible degree is high, use 5-100000 hours and hours without power attenuation problem.

6.The 50W fiber laser marker adopts Germany scanning galvanometer. It has high scanning speed and good quality laser beam.

7.The 50W IPG fiber laser marker adopts high grade motherboard which has powerful features. This software can be matched with CorelDraw, AutoCAD, Photoshop and others. It also support PLT,PCX,DXF,BMP,etc. It also can directly uses SHX and TTF FontLab.

8.This fiber laser marker has red light preview functions too.

9. This jewelry  hardware fiber laser marker has manual adjustment laser optics functions which is good for fine marking.

10. The cabinet type fiber laser marker has X and Y axis bidirectional mobile platform and 360 degrees rotary fixture which is good for plane, cylindrical or conicalness marking.


Parameters

Model

Fiber 20/30/50W

Length of laser wave

1064um

Maximum laser power

20/30/50W

M2/Beam quality M2

1.2

Repeat frequency

20-80KHZ

Marking Scope

100X100mm  150X150mm

Marking depth

0.3mm(Adjustable depending on material)

Marking line width

0.01mm

Marking line speed

15000mm/s

Min character

0.1mm

Repeat precision

+-0.001mm

Machine power

+-800W

Chassis

There is one cabinet and portable optional

Power supply

AC/220/50HZ

laser marking machine
